Home Ball Valves Hydraulic Ball Valves Hydraulic Ball Valves
Carbon Steel Ball Valves
Back to products
Stainless Steel Needle Valve (SSNV)

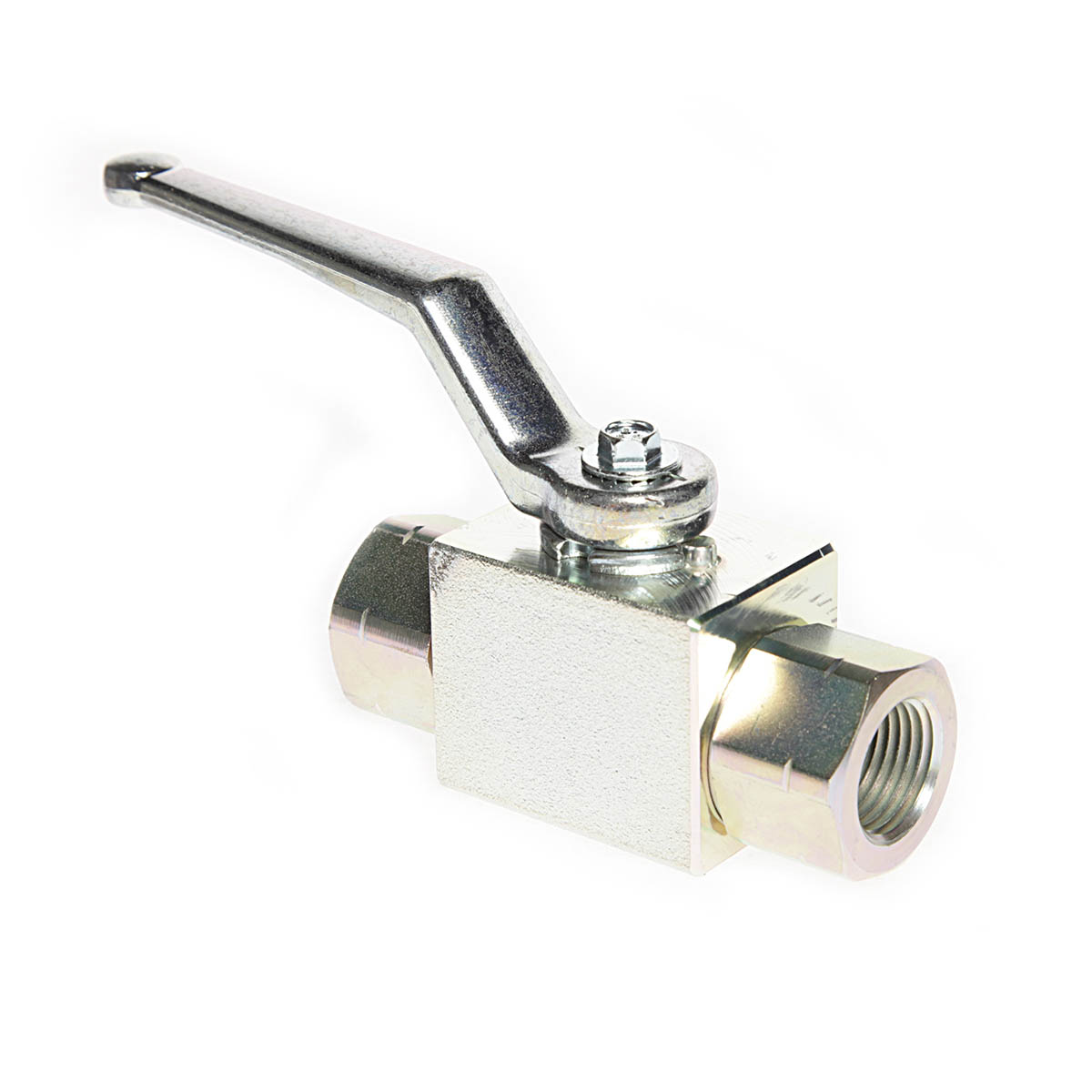

Hydraulic Ball Valves

Please see below for product description and specs.
Category: Hydraulic Ball Valves Tags: ball, hydraulic, valves
  • Description
  • Additional information
Description
  • For all types of Hydraulic Fluid
  • Block Body – Zinc Clear Coating
  • Full Port
  • Delrin ball seats
  • Viton stem seals
  • Temp. -20º F to 210º F
Model Size Max. Press.
3400-02 1/4” 7350 psi
3400-03 3/8” 7350 psi
3400-04 1/2” 7350 psi
3400-06 3/4” 5880 psi
3400-08 1” 5145 psi
Additional information
Model

3400-02, 3400-03, 3400-04, 3400-06, 3400-08
