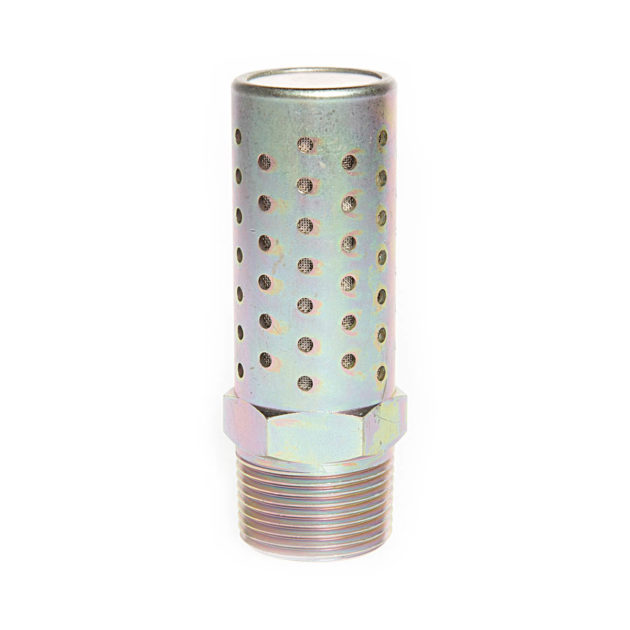

Metal High Flow Mufflers – B-Series
Please see below for product description and specs.
Description
Rugged design featuring corrosion-resistant all metal construction, high-flow capacity and minimal back pressure.
When installed in the exhaust ports of pneumatic valves, these metal pneumatic silencers are a quick and inexpensive method to help reduce work area noise and at the same time they protect the inside of the valve from contamination through the exhaust ports.
- Maximum operating pressure 300 psi
- Operating temperatures 35°F to 160°F
| Model | Size |
| B18 | 1/8” |
| B28 | 1/4” |
| B38 | 3/8” |
| B48 | 1/2” |
| B68 | 3/4” |
| B88 | 1” |
| B108 | 1 1/4” |
| B128 | 1 1/2” |
| B168 | 2” |
Manufacturer Crossover
| RFP | Alwitco | ARO | Numatic |
| B18 | 154018 | 20308-1 | M1MN |
| B28 | 154028 | 20308-2 | M2MN |
| B38 | 154038 | 20308-3 | M3MN |
| B48 | 154048 | 20308-4 | M4MN |
| B68 | 154068 | 20308-6 | M6MN |
| B88 | 154088 | 20308-8 | M8MN |
| B108 | 154108 | ||
| B128 | 154128 | ||
| B168 | 154168 |
Additional information
| Model | B 18, B 28, B 38, B 48, B 68, B 88, B 108, B 128, B 168 |
|---|
