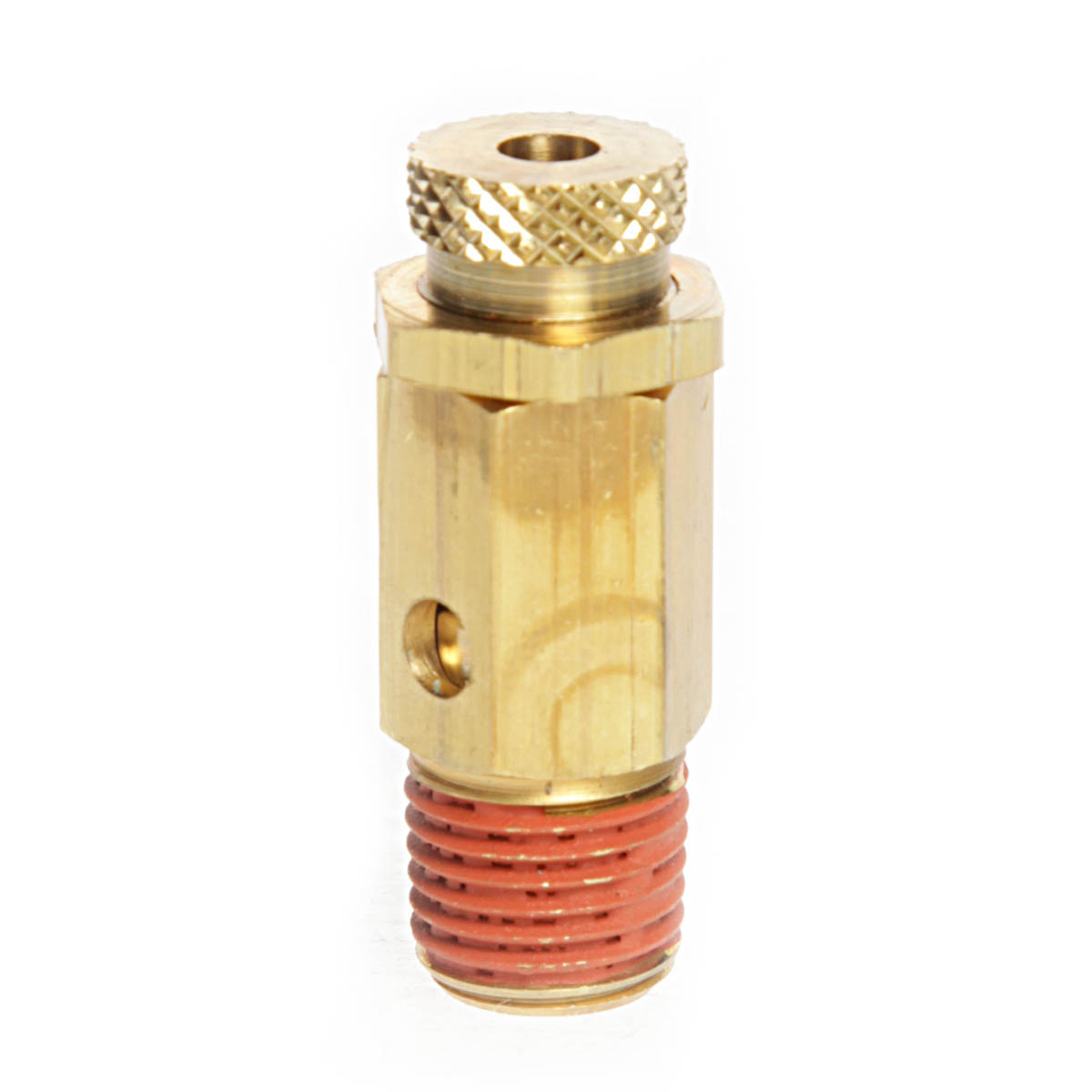

Non Code Relief Valve (Control Devices) - Image 1
Click to enlarge
High Capacity ASME Side Port Relief Valves (Control Devices)
High Capacity ASME Side Port Relief Valves (Control Devices)
Back to products
Low Pressure Relief Valve (PR-25) (Control Devices)
Low Pressure Relief Valve (PR-25) (Control Devices)

Non Code Relief Valve (Control Devices)

Please see below for product description and specs.
Categories: , Tags: , ,
Description

This non-code safety valve is field adjustable, with a knurled thumbscrew that make adjustments easy and repeatable. They can be unset, factory set and locked with the jam nut, or factory set and staked to deter field adjustment.

  • Construction: Brass body, stainless steel spring, silicon rubber seal
  • Maximum Temperature: 250º F
  • Set Pressure Range: 25 psi to 250 psi
Model Size
NC- 25 1/4”
Additional information
Range25 to 50 psi, 50 to 100 psi, 100 to 150 psi, 150 to 200 psi
ManufacturerControl Devices
