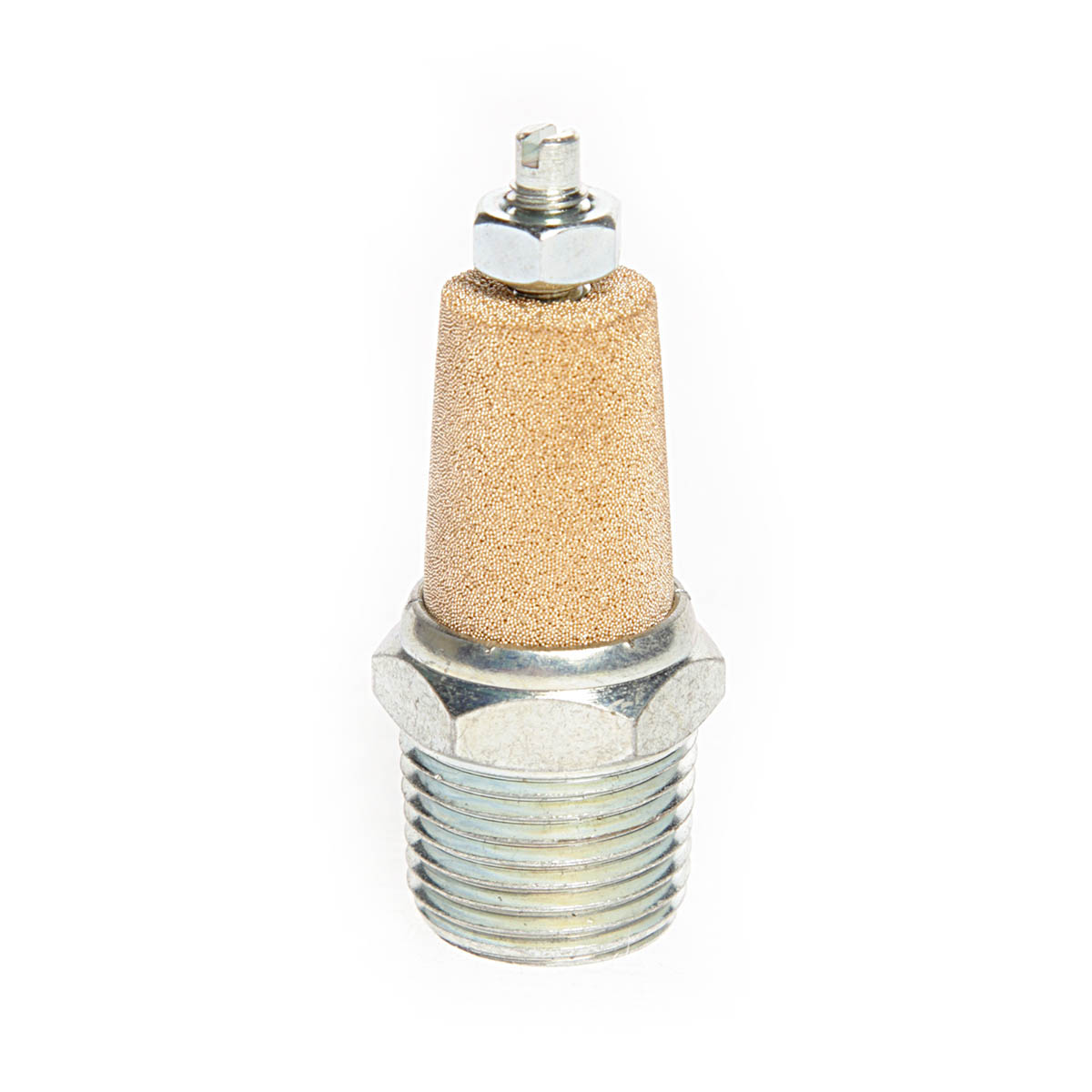

SPBM-Series muffler utilizes P or SBM series muffler to fit with an external flow adjustment screw.
The external flow adjustment screw accurately varies the orifice opening from closed to full flow as required. The final position is then locked in place by the lock nut. Unit should be mounted in a protective position free from excessive vibration.
- Maximum operating pressure 300 psi.
- Operating temperatures 35˚F to 300˚F
- 40 micron
Model | Size |
SPBM-1 | 1/8” |
SPBM-2 | 1/4” |
SPBM-3 | 3/8” |
SPBM-4 | 1/2” |
