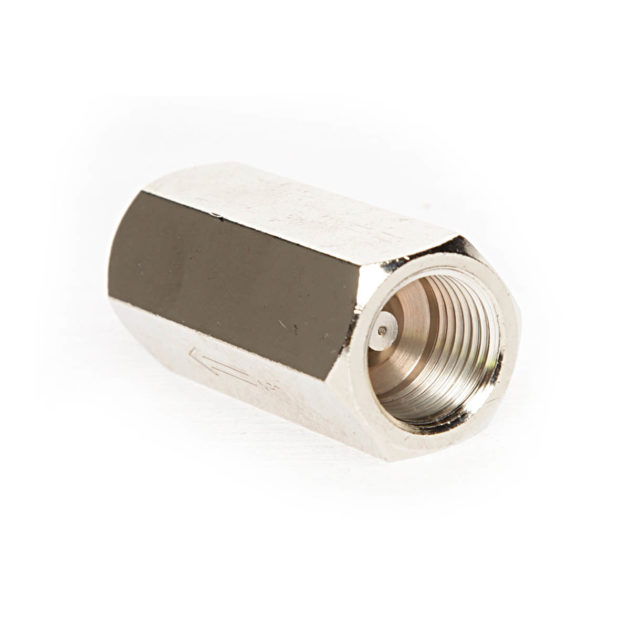

Check Valve - Female - Female - Image 1
Click to enlarge
Swing Check Valve
Swing Check Valve
Back to products
Check Valve - Male-Male (Control Devices)
Check Valve - Male-Male (Control Devices)

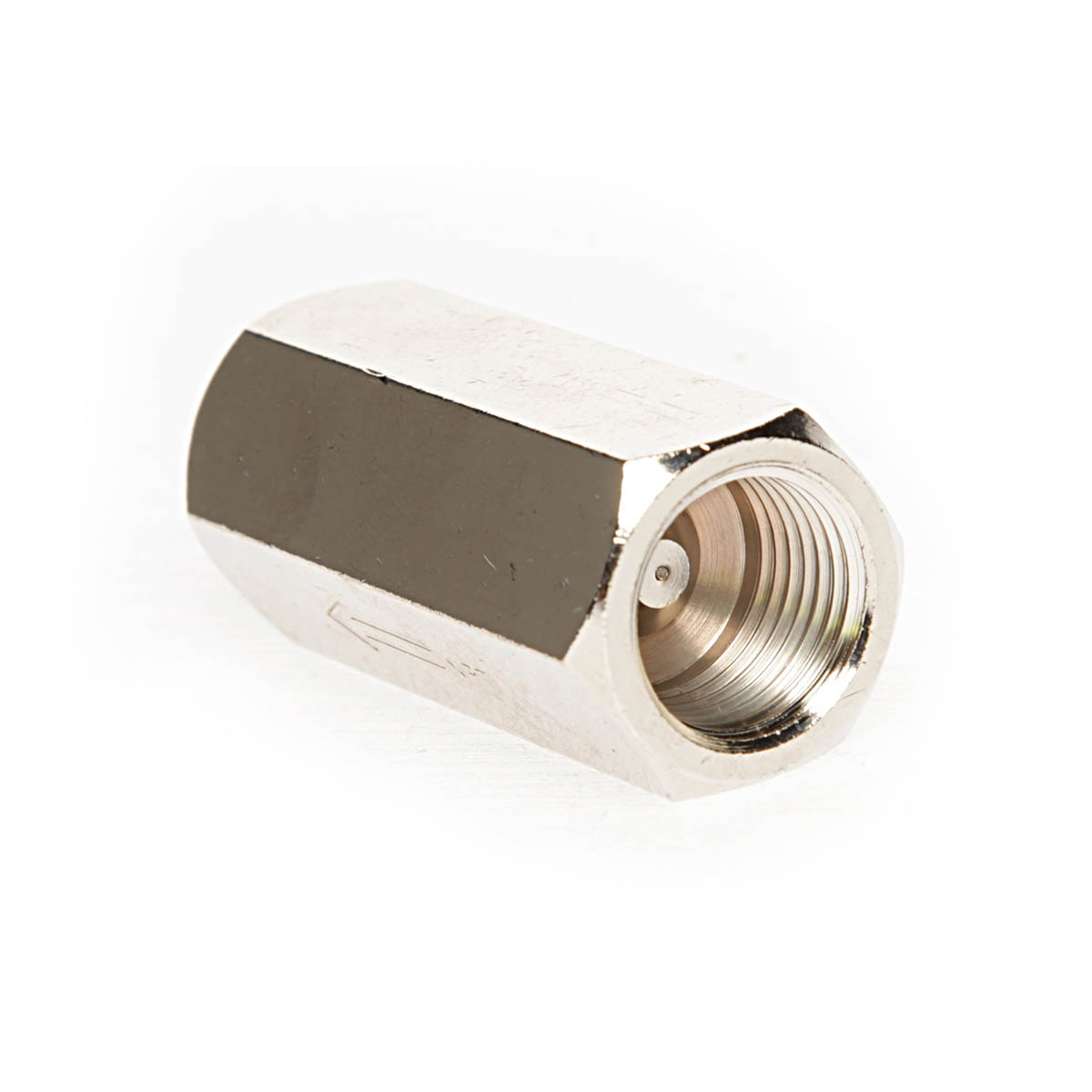

Check Valve – Female – Female

Please see below for product description and specs.
Category:
Description
  • 212 psi maximum
  • 40° F to 140° F
  • Nickel Plated Brass
  • Cracking pressure 5 psi
Model Size
CV-1 1/8”
CV-2 1/4”
CV-3 3/8”
CV-4 1/2”
Additional information
ModelCV-1, CV-2, CV-3, CV-4
