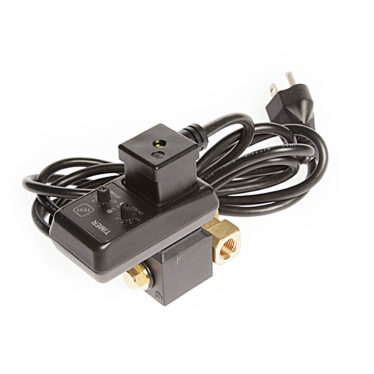

Electronic Drain
Click to enlarge
Home Electronic Drains Control Devices Timer Drain 1/2” NPT Inlet 3/8″ NPT Outlet (JH53-0KWAA)
T Handle Brass Ball Valve - Full Port
Back to products
Sintered Bronze Short Thread NPT Mini Silencer (economy)

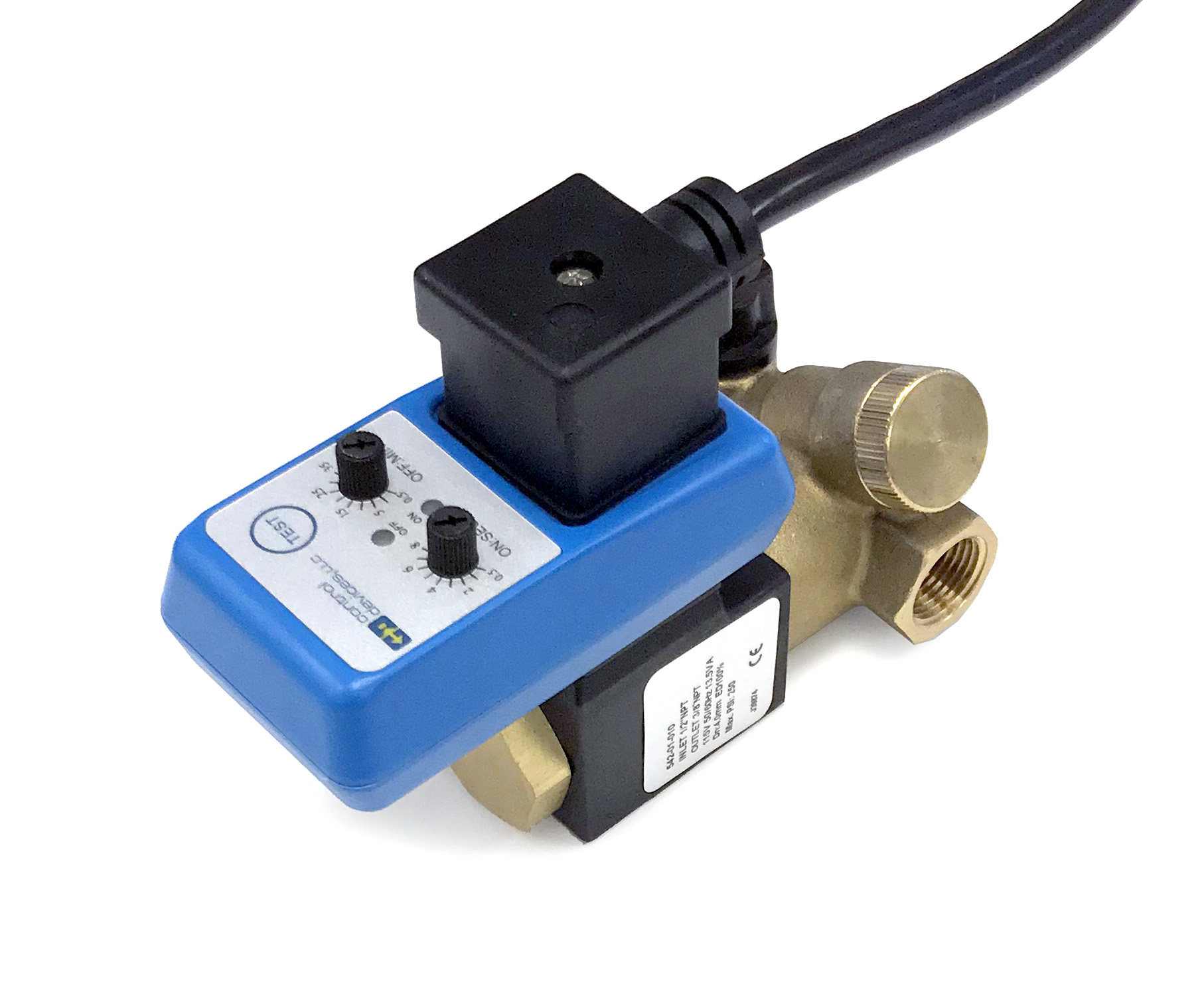

Control Devices Timer Drain 1/2” NPT Inlet 3/8″ NPT Outlet (JH53-0KWAA)

Contact for Pricing

Please see below for product description and specs.
Add to wishlist
SKU: JH53-0KWAA Category: Electronic Drains Tags: Control Devices, electronic drain, timer drain
Share:
  • Description
  • Additional information
  • Shipping & Delivery
Description
  • Inlet: 1/2” FIP
  • Outlet: 3/8″ FIP
  • Voltage: 115v
  • Capacity: 2.72 GPM @100 PSI
  • Maximum Pressure: 250 PSI
  • Maximum Fluid Temperature: 285°F
  • Drain (On) Time Range: .5 to 10 seconds
  • Cycle Time Range: .5 to 45 Minutes

ELIMINATE CONDENSATE. All compressed air systems create condensation, it is inherent to the process. Condensate reduces system capacity and damages system components, equipment and tools. The CDI Timer Drain is a cost-effective way to eliminate condensate from receivers, dryers, filters and drop legs while controlling the amount of compressed air lost in the process.

SIMPLE INSTALLATION. The CDI Timer Drain can be mounted horizontally or vertically and has a 72″ grounded 115v power cord.

REGULAR DRAINAGE. You select how often and how long the timer drain opens. Once set, the drain operates 24 hours a day, 365 days a year to eliminate condensation from the system. Each CDI Timer Drain is individually controlled so they can be installed in multiple locations with different activation schedules.

MINIMAL MAINTENANCE. The valve body of the CDI Timer Drain has a stainless-steel screen to keep debris from reaching the valve seals and a quarter-turn valve to make cleaning the screen simple and efficient. The TEST button activates the drain to verify proper operation and the duration of the On-Time selected. Routine maintenance can be performed without interrupting the systems operation.

Additional information
Manufacturer

Control Devices
