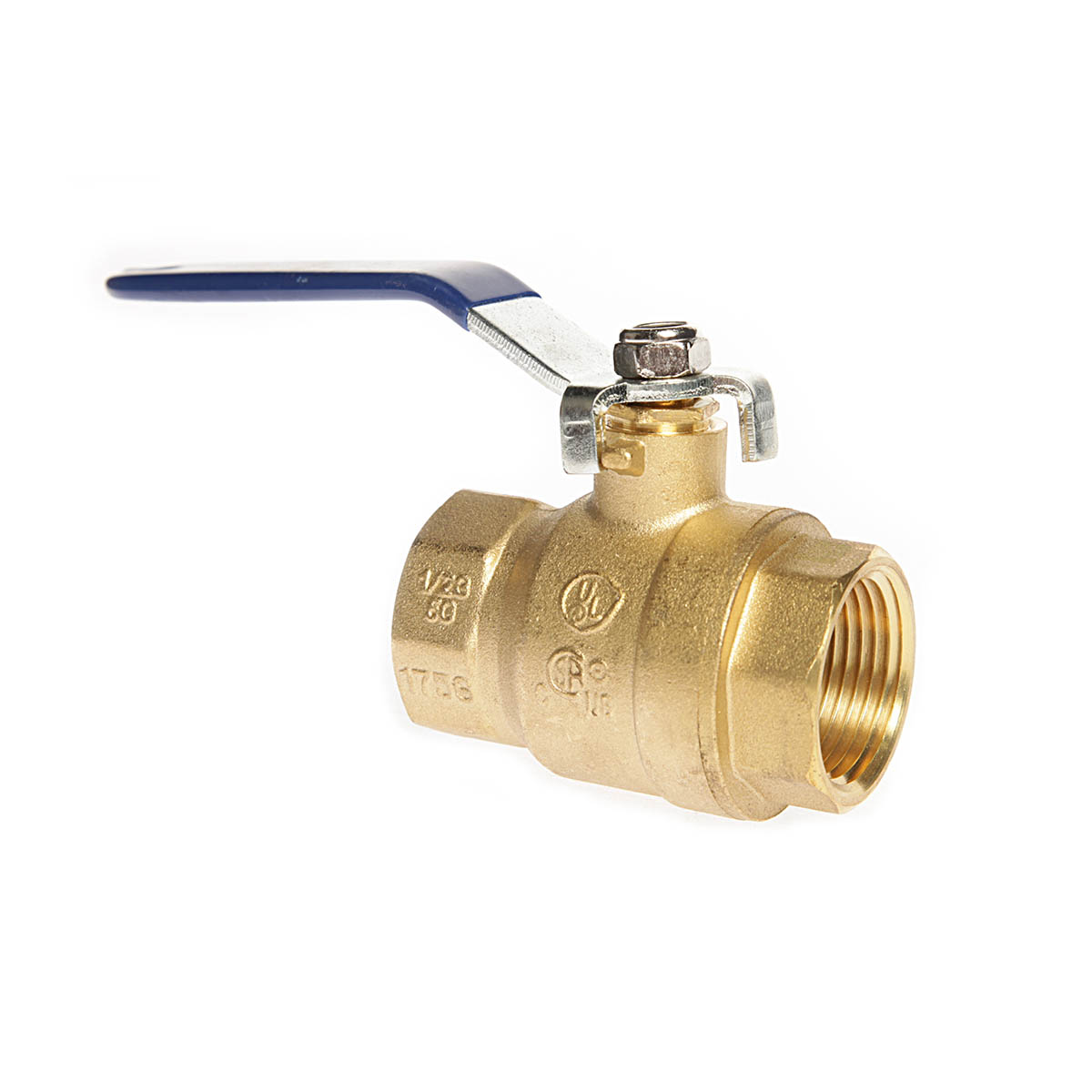

Full Port Brass Ball Valves (General Purpose)
Back to products
Safety Exhaust Ball Valve with Locking Handle

Full Port- CGA, AGA, UL Approved

Please see below for product description and specs.
Category: Tags: , , ,
Description
  • 600 psi
  • Chrome plated ball
  • Blow-out proof c/w adjustable packing
  • CGA 3.16 Approved for -40°F to 400° F
Model Size Port Dia
613-2 1/4’’ 10mm
613-3 3/8” 10mm
613-4 1/2” 15mm
613-6 3/4” 20mm
613-8 1” 25mm
613-10 1 1/4” 32mm
613-12 1 1/2” 40mm
613-16 2” 50mm
Additional information
Model

613-2

,

613-3

,

613-4

,

613-6

,

613-8

,

613-10

,

613-12

,

613-16

Related products

2 Piece Stainless Steel Ball Valve with Locking Handle

Full Bore 1000 psi Body – CF8M 316SS Ball/Stem 316 SS Seats PTFE Model Size Port Dia. SS2FF-2 1/4” 11.2

Cold Start Valve (Control Devices)

CS -12 and CS -25 valves bleed air from the compressor head during the first few revolutions, thus reducing motor

Hose Ferrules – Brass

Model Hose Size Hose OD DFBL-500 1/4” .500 DFBL-675 3/8” .675 DFBL-875 1/2” .875

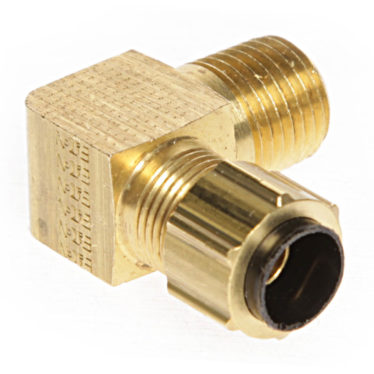

Male Elbow 90°
